Product name

DM 11x20x42

Explore options

Technical specifications

Base material

Lath size (wx/hx)

Sloted cross bar

No. of blades

Element weight kg/m2

Surface

Fire classification

Humidity resistance

Acoustical treatment

Open area

Suspension

Real wood: Pine, Larch, Birch, Oak etc.

20x42mm

45x35mm+26x35mm

7,48

Standard WB coating , oil /wax coating, staining etc.

B s1.d0 , EU norm EN 13501-

70% standard to 95% treated

Rockfon Industrial mineral fibre pad 20mm or acoustical fleece 155g/m2

63%

Standard plaster board studs or wood trims - direct mount

Explore options

Technical specifications

Base material: Real wood: Pine, Larch, Birch, Oak etc. Lath size (wx/hx): 20x42mm Sloted cross bar: 45x35mm+26x35mm No. of blades: 11 Element weight kg/m2: 7,48 Surface: Standard WB coating , oil /wax coating, staining etc. Fire classification: B s1.d0 , EU norm EN 13501- Humidity resistance: 70% standard to 95% treated Acoustical treatment: Rockfon Industrial mineral fibre pad 20mm or acoustical fleece 155g/m2 Open area: 63% Suspension: Standard plaster board studs or wood trims - direct mount

Graph

Sound absorption

PRODUCT	αw	125	250	500	1000	2000	4000
ADV 2-16+10-16	0.80	0.5	0.75	0.85	0.95	0.90	0.80

PRODUCT	ADV
αw	0.80
125	0.5
250	0.75
500	0.85
1000	0.95
2000	0.90
4000	0.80

More about the product

Downloads

VARILINE 11x20/42

Explore

Surfaces

WOOD

OPEN FULL PALLET

Gallery

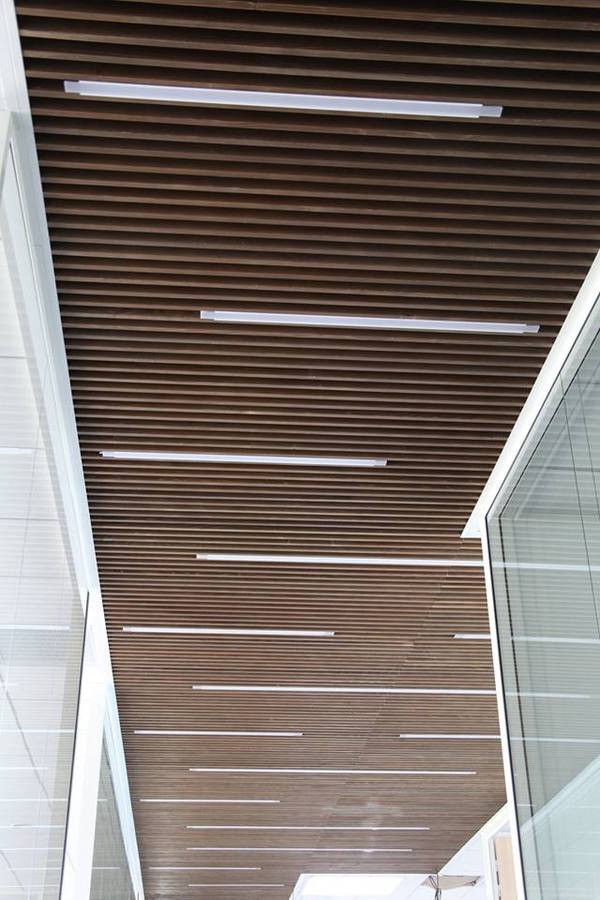

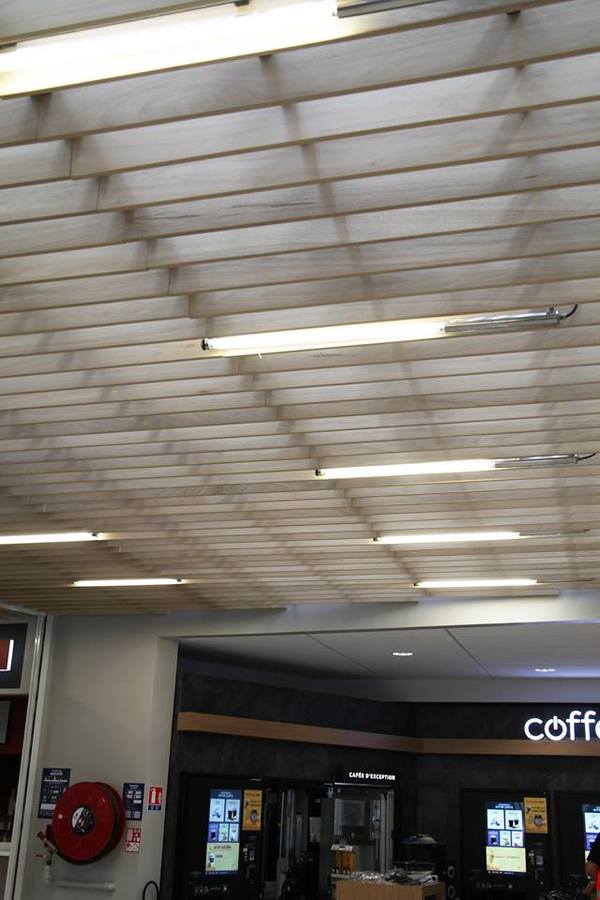

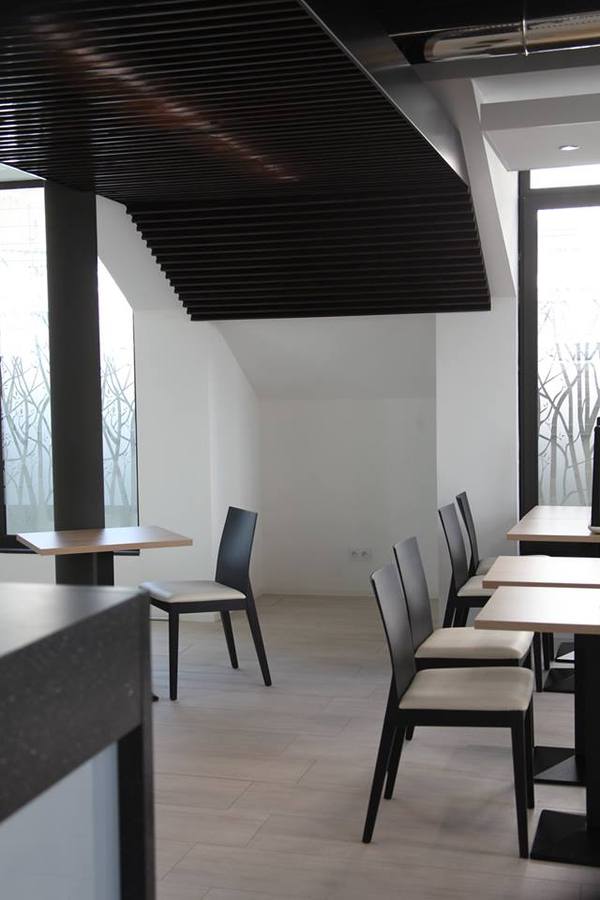

Product in use
